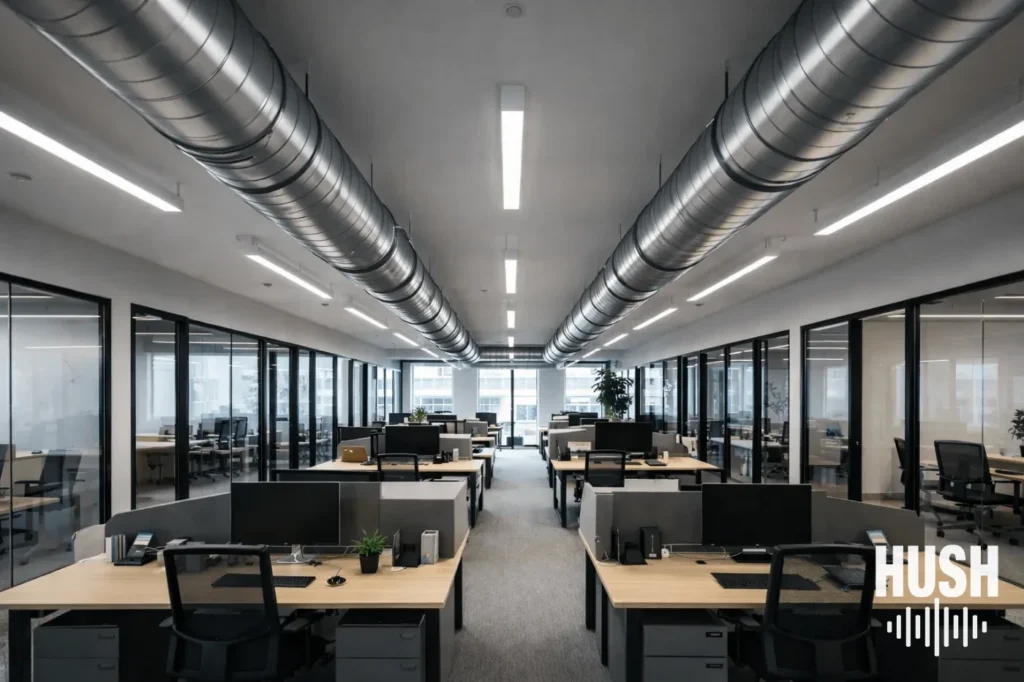

HVAC Duct Soundproofing
HVAC Duct Soundproofing
HVAC duct noise is the classic “the building is talking” problem: fan noise traveling through ducts, cross-talk between rooms, and breakout noise where the duct acts like a loudspeaker. Above all, HVAC duct soundproofing has to reduce sound without choking airflow, and it has to respect fire/smoke requirements and access panels.
What duct noise usually is
- Fan noise transmission: supply or return paths carrying sound directly into occupied rooms.
- Cross-talk: voices and activity traveling between rooms through duct runs.
- Rumble and low-frequency components: often tied to vibration, velocity, and system balance.
- Breakout noise: the duct radiates sound through ceilings and walls.
What works: HVAC duct soundproofing without sacrificing airflow
We design duct noise control so the HVAC system still functions correctly. Typical strategies include:
- Duct silencers and attenuators: used where fan noise is transmitted down the line.
- Acoustic lining where appropriate: to reduce internal reflection and breakout.
- Sound mazes / plenum strategies: to block direct line-of-sight transmission while maintaining airflow.
- Vibration isolation at connections: because vibration can excite duct walls and create breakout noise. Flexible connectors at the fan also stop vibration from traveling down the duct.
- Penetration sealing: airtightness matters—sound rides on air leaks.
For example, we compare duct silencers by insertion loss, that is, how many decibels a silencer removes compared with plain duct. Internally lined duct also absorbs fan noise along its length. Between rooms that share a duct, a crosstalk silencer cuts the speech that carries from room to room. As a result, the room gets quieter and still gets the air it needs.
If the duct is above a sensitive room, the receiving condition may also require ceiling soundproofing.
Hot ducts and mechanical spaces: foil-faced insulation + durability
In some buildings, ductwork and piping run through warm mechanical zones and shafts. When durability and temperature stability matter, HVAC duct soundproofing needs heat-appropriate detailing:
- Foil-faced insulation systems: to maintain performance and cleanability over time.
- Sealed jacketing and continuity: so the system remains intact through maintenance cycles.
- Damping where needed: to reduce panel resonance and metal “ring” on large duct faces.
Frequently Asked Questions
Can I just add insulation around the duct? Sometimes it helps, but duct noise often needs internal attenuation (silencers/lining) plus vibration control and airtightness.
Why can I hear conversations through the vent? In practice, cross-talk through shared duct paths is common. So it requires a designed break in the sound path, not a cosmetic grille change.
Related mechanical systems:
Further reading:
Common HVAC Duct Noise Problems in NYC Buildings
HVAC duct soundproofing usually solves one of three problems. First, there’s fan and equipment noise that travels down the ductwork into occupied rooms. Second, there’s crosstalk, where conversations in one room carry through a shared duct into the next. Third, there’s airflow noise, the hiss or rush at grilles when air moves too fast. Acousticians call it regenerated noise, created by turbulence at dampers, elbows, take-offs and grilles. It also rises steeply with air velocity. Although all three sound similar, each one needs a different fix.
Fortunately, the solutions are well established. The NYC DEP Residential Noise Control Guidance Sheet lists duct silencers, acoustical lining, smoother duct routing without sharp turns, low-noise diffusers and spring isolators for vibrating equipment. Similarly, the ASHRAE Handbook chapter on noise and vibration control is the industry reference for sizing these measures. In practice, we measure first, so we treat the actual cause instead of guessing.
We also set a target before we design. NC or RC curves rate a room’s background noise by octave band, so they define how quiet the HVAC must be. For example, a bedroom or conference room needs a lower NC rating than a lobby.
HVAC Duct Soundproofing FAQs
Why can I hear my neighbor through the air vent?
Most likely, your units share a duct run with little or no lining. Consequently, sound travels freely between grilles. Adding lined elbows, silencers or a sound maze usually solves it.
Is duct lining safe?
Yes, when you use products made for HVAC systems. Today, many linings have coated surfaces that resist erosion and help keep air clean.
Why is my vent so loud even with the fan on low?
Often, the air is moving too fast through a small or dirty grille. In that case, upsizing or swapping the diffuser and balancing the system can quiet it.
Will HVAC duct soundproofing reduce airflow?
Not when it’s designed correctly. In fact, we size silencers and linings to keep pressure drop within the system’s limits.
See HVAC unit soundproofing, mechanical noise and acoustic reports.
